Mellanox InfiniBand MCP7Y00-N002 Compatible With 800G OSFP Top 2x400G OSFP NDR InfiniBand Flat Passive Split

Name: Mellanox InfiniBand MCP7Y00N002 Compatible With 800G OSFP Top 2x400G OSFP NDR InfiniBand Flat Passive Split
Brand: HengzhengTC
Price: 1 USD

Wholesale Mellanox InfiniBand MCP7Y00-N002 Compatible With 800G OSFP Top 2x400G OSFP NDR InfiniBand Flat Passive Split from china suppliers

Model Number : HZDO800D02FL

Place of Origin : Beijing, China

Brand Name : HengzhengTC

MOQ : 1pieces

Price : $1,100-1500 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

Connector Type : OSFP to 2x OSFP

Power - Minimum Receivable : 0.1W

Applications : Infiniband QDR interconnects

Maximum transmission rate : 800Gbps

Minimum bending radius : 72mm

Power consumption : ≤0.1W

Use : Used for Quantum-2 switch and ConnectX-7 HCA

Cable length : 2m (7ft)

Contact Now

Product Description

Mellanox InfiniBand MCP7Y00-N002 Compatible With 800G OSFP Top 2x400G OSFP NDR InfiniBand Flat Passive Split

Encapsulation	OSFP (with heatsink on top) to OSFP (with heatsink on top)
Fiber Type	Copper Cable
Minimum Bending Radius	72mm
Temperature Range	0~70°C (32~158°F)
Technical Protocols	OSFP MSA, CMIS Rev 4.0, IEEE 802.3 ck
Maximum Transmission Rate	800Gbps
Cable Type	Passive Twisted Pair Cable
Power Consumption	≤0.1W
Outer Sheath Material	PVC (OFNR)
Modulation Format	PAM4

Features
* Meets the requirements of the InfiniBand HDR end-to-end system
*Low latency, low insertion loss, low crosstalk, high-speed interconnection
* Convert 8x100G-PAM4 signals into two 4x100G-PAM4 signals.
*Comprehensive inspection, fully compatible with NVIDIA QM9700/9790 devices
* The minimum bending radius is 72mm, making it easy to flexibly route
* Simplified wiring and provided an affordable solution for short-distance links

* Compliant with OSFP MSA, IEEE 802.3cd, and CMIS v4.0 standards

Description

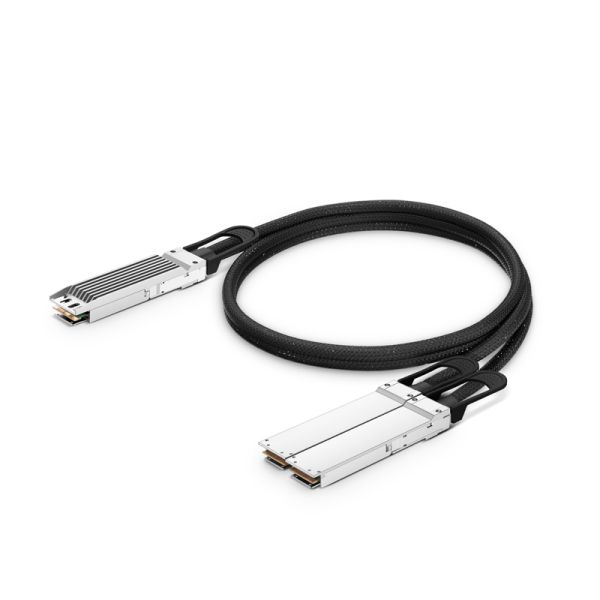

The Mellanox InfiniBand MCP7Y00-N002 cable is an 800 Gb/s dual-port OSFP to 2×400 Gb/s dual-port OSFP dual-branch high-speed cable. The 8-channel dual-port OSFP connector on top features a heatsink and is suitable for Quantum-2 and Spectrum-4 switches. The 2 400G ports support 4 channels of 100G-PAM4 (400G) and adopt a flat-top OSFP package, compatible with ConnectX-7 network cards and connector racks with heatsinks for BlueField-2/3 power supplies. This cable complies with OSFP MSA and IEEE 802.3ck standards.

Ordering Information

ORDERABLE PART NUMBER (OPN)	DESCRIPTION
HZDO800O2D01FL	1m (3ft) Mellanox MCA7J60-N001 Compatible 800G OSFP Top Heatsink to 2 x 400G OSFP NDR InfiniBand Flat Top Active Breakout High-Speed Cable for Quantum-2 Switches and ConnectX-7 HCA
HZDO800O2D02FL	2m (7ft) Mellanox MCA7J60-N002 Compatible 800G OSFP Top Heatsink to 2 x 400G OSFP NDR InfiniBand Flat Top Active Breakout High-Speed Cable for Quantum-2 Switches and ConnectX-7 HCA
HZDO800O2D03FL	3m (10ft) Mellanox MCA7J60-N003 Compatible 800G OSFP Top Heatsink to 2 x 400G OSFP NDR InfiniBand Flat Top Active Breakout High-Speed Cable for Quantum-2 Switches and ConnectX-7 HCA
HZDO800O2D04FL	4m (13ft) Mellanox MCA7J60-N004 Compatible 800G OSFP Top Heatsink to 2 x 400G OSFP NDR InfiniBand Flat Top Active Breakout High-Speed Cable for Quantum-2 Switches and ConnectX-7 HCA
HZDO800O2D05FL	5m (16ft) Mellanox MCA7J60-N005 Compatible 800G OSFP Top with Heatsink to 2 x 400G OSFP NDR InfiniBand Flat Top Active Breakout High-Speed Cable for Quantum-2 Switches and ConnectX-7 HCA

Company Profile

Beijing Hengzheng TC Sci-Tech Co.,Ltd. is a trusted supplier of rovider of data communication products and information security products solutions,headquartered in Beijing, China, with over 16 years of industry experience since our founding in 2009. Products including but not limited to:
Network cards, Optical modules, High-speed cables, Switches, and Industrial control boards.

Our dedicated team (50+ employees) specializes in networking, storage, and connectivity solutions, ensuring global customers receive high-performance hardware at competitive prices, and a prompt 7*24h service to keep your business guaranteed.
