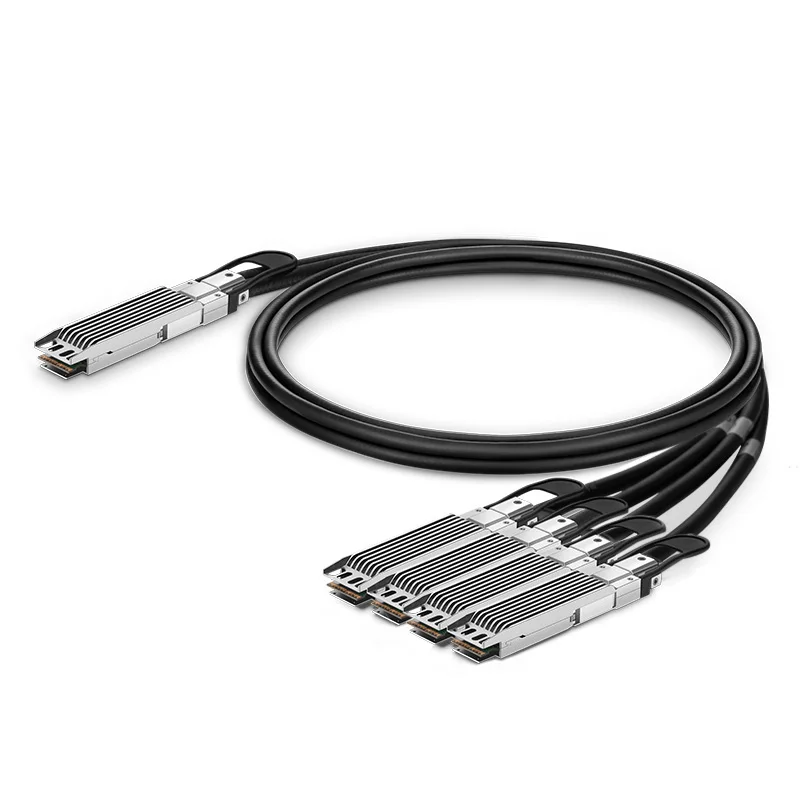

MCP7Y50-N001 Compatible 800G OSFP Top With Heatsink To 4x200G OSFP NDR InfiniBand Passive Branch

Name: MCP7Y50N001 Compatible 800G OSFP Top With Heatsink To 4x200G OSFP NDR InfiniBand Passive Branch
Brand: HengzhengTC
Price: 296 USD

Wholesale MCP7Y50-N001 Compatible 800G OSFP Top With Heatsink To 4x200G OSFP NDR InfiniBand Passive Branch from china suppliers

Model Number : HZDO800O4D01

Place of Origin : Beijing, China

Brand Name : HengzhengTC

MOQ : 1 piece

Price : $296-391 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

Connector Type : OSFP to 4x OSFP

Power - Minimum Receivable : ≤0.1W

Applications : Infiniband QDR interconnects

Encapsulation : OSFP to 4x OSFP

Maximum transmission rate : 800Gbps

Minimum bending radius : 31mm

Use : Used for Quantum-2 switch

Cable length : 1m (3ft)

Contact Now

Product Description

MCP7Y50-N001 Compatible 800G OSFP Top With Heatsink To 4x200G OSFP NDR InfiniBand Passive Branch

Model Number	HZDO800O4D01
Type	Passive branch high-speed cable
Place of Origin	China
Province	Beijing
Quality	High quality

Features
* Complies with InfiniBand NDR end-to-end system requirements
*Low latency, low insertion loss, low crosstalk, high-speed interconnection
* 8x 100G-PAM4 converted to 4 channels of 2x100G-PAM4
*After thorough testing with the real machine, it is fully compatible with NVIDIA (NVIDIA) QM9700/9790 devices
* Minimum bending radius 31mm, flexible wiring
* Simplified wiring provides an economical and efficient way for short-distance connections

* Compliant with OSFP MSA, IEEE 802.3ck, and CMIS v4.0 standards

Description

This Mellanox InfiniBand MCP7Y50-N001cable is an 800Gb/s dual-port OSFP to 4×200Gb/s OSFP passive dual-branch high-speed cable. The 8-channel dual-port OSFP connector on the top is equipped with a heatsink and is compatible with Quantum-2 and Spectrum-4 switches. The two 400G ports support 4-channel 10G-PAM4 (400G) signals. This cable complies with the OSFP MSA and IEEE 802.3ck standards.

Ordering Information

ORDERABLE PART NUMBER (OPN)	DESCRIPTION
HZDO800O4D005	0.5m (2ft) Mellanox MCP7Y50-N0005 Compatible 800G OSFP Top Heatsink to 4x200G OSFP NDR InfiniBand Top Heatsink Passive Breakout High-Speed Cable for Quantum-2 Switches
HZDO800O4D01	1m (3ft) Mellanox MCP7Y50-N001 Compatible 800G OSFP Top Heatsink to 4x200G OSFP NDR InfiniBand Top Heatsink Passive Breakout High-Speed Cable for Quantum-2 Switches
HZDO800O4D015	1.5m (5ft)Mellanox MCP7Y50-N0015 Compatible 800G OSFP Top Heatsink to 4x200G OSFP NDR InfiniBand Top Heatsink Passive Breakout High-Speed Cable for Quantum-2 Switches
HZDO800O4D02	2m (7ft) Mellanox MCP7Y50-N002 Compatible 800G OSFP Top Heatsink to 4x200G OSFP NDR InfiniBand Top Heatsink Passive Breakout High-Speed Cable for Quantum-2 Switches
