SN4800 Ethernet Lan Switch With 400GbE Ports 8Tb/S Capacity 4U Rack For Data Centers

Name: SN4800 Ethernet Lan Switch With 400GbE Ports 8TbS Capacity 4U Rack For Data Centers
Brand: NVIDIA
Price: 23 USD

Brand Name : NVIDIA

Model Number : SN4800

Place of Origin : Beijing, China

MOQ : 1 piece

Price : $23,000 -32,000/ piece

Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram

Packaging Details : BOX

ports : Eight interface cards and one management card.

transmission rate : 1/10/25/40/50/100/200/400GbE

communication mode : Full-Duplex & Half-Duplex

switch capacity : 8Tb/s

Shape specification : 4U Rack Design

Power Supply : 50-60Hz; 100-264V AC

Operating Temperature : 0°c ~ 45°c

Storage Temperature : -40°c ~ 70°c

Contact Now

Product Description

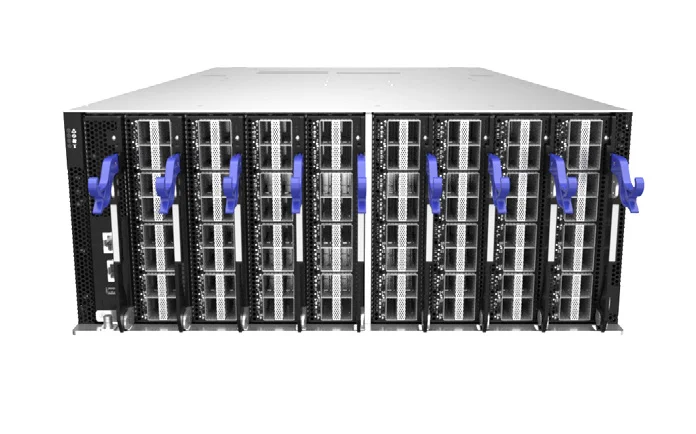

SN4800

SN4800 is a modular switch platform, which realizes great flexibility and customization through eight interface cards and one management card, and is very suitable for large-scale virtualized data centers and cloud environments. The universal 4U form factor is adopted, which shows the super 8.4Bpps processing capacity and throughput up to 12.8 TB/s.. SN4800 provides various connections in the combination of 1/10/25/40/50/100/200/400GbE. Available interface cards include 16 100GbE (QSFP28) interfaces, 4 400GbE (QSFP-DD)* interfaces and 8 200GbE (QSFP56) interfaces.

joggle/interface	Based on interface card (up to 400GbE ports: up to 32 in the whole chassis; Up to 200GbE ports: up to 64 ports in the whole chassis; Up to 100GbE ports: up to 128 ports in the whole chassis; Up to 50GbE ports: up to 128 ports in the whole chassis; Up to 40GbE ports: up to 40gbe ports in the whole chassis. 128; Up to 25GbE ports: up to 128 ports in the whole chassis; Up to 10GbE ports: up to 128 ports in the whole chassis; Up to 1GbE ports: up to 128 in the whole chassis)
Exchange capacity [Tb/s]	8Tb/s
Line speed switching [Bpps]	8.4Bpps
CPU	Six-core x86
System memory	32GB
SSD memory	128GB
Packet caching	64MB
Number of 100/100 management ports	1
Number of serial ports	1 RJ45
Number of USB ports	1
Hot plug power supply quantity	4 (2+2 redundancy)
Number of hot plug fans	6 (N+1 redundancy)
Reversible airflow option	support

Ordering Information

MSN4800-WS4F	400GbE 4U modular open Ethernet chassis based on Spectrum-3, 4 power supplies (AC), x86 CPU, standard depth, P2C airflow, slide rail kit.
MSN4800-WS4R	400GbE 4U modular open Ethernet chassis based on Spectrum-3, 4 power supplies (AC), x86 CPU, standard depth, C2P airflow, slide rail kit.
MSN4800-C16	SN4800 100GbE interface card, 16 QSFP28 ports
MSN4800-MGMT-2C	SN4800 chassis management card (using Cumulus), x86 six-core CPU, 128G SSD, 32G RAM.
MSN4800-MGMT-2O	SN4800 chassis management card (using ONIE), x86 six-core CPU, 128G SSD, 32G RAM.
